Polyether-imide (PEI)

Polyetherimide (PEI) is an amorphous thermoplastic in transparent tinted brown colour,This material have high heat deflection temperature (200°C) and high tensile strength and its mechanical properties can retain well at high temperatures, the material itself is inherently flame resistant and good resistance to UV radiation and gamma radiation. The material can resists to a wide range of chemicals; such as alcohols, gasoline and mineral-acid, but have poor resistant to halogenated solvents, such as Industrial cleaning solvent that contain Methylene chloride or Tri-chloroethane, as these solvents can cause the material become brittle and followed by cracking.
Loading...

Properties

  • High mechanical strength
  • Non toxic
  • Good chemical resistant
  • Good thermal stability
  • High radiation resistant
  • Low smoke emission

Application Example

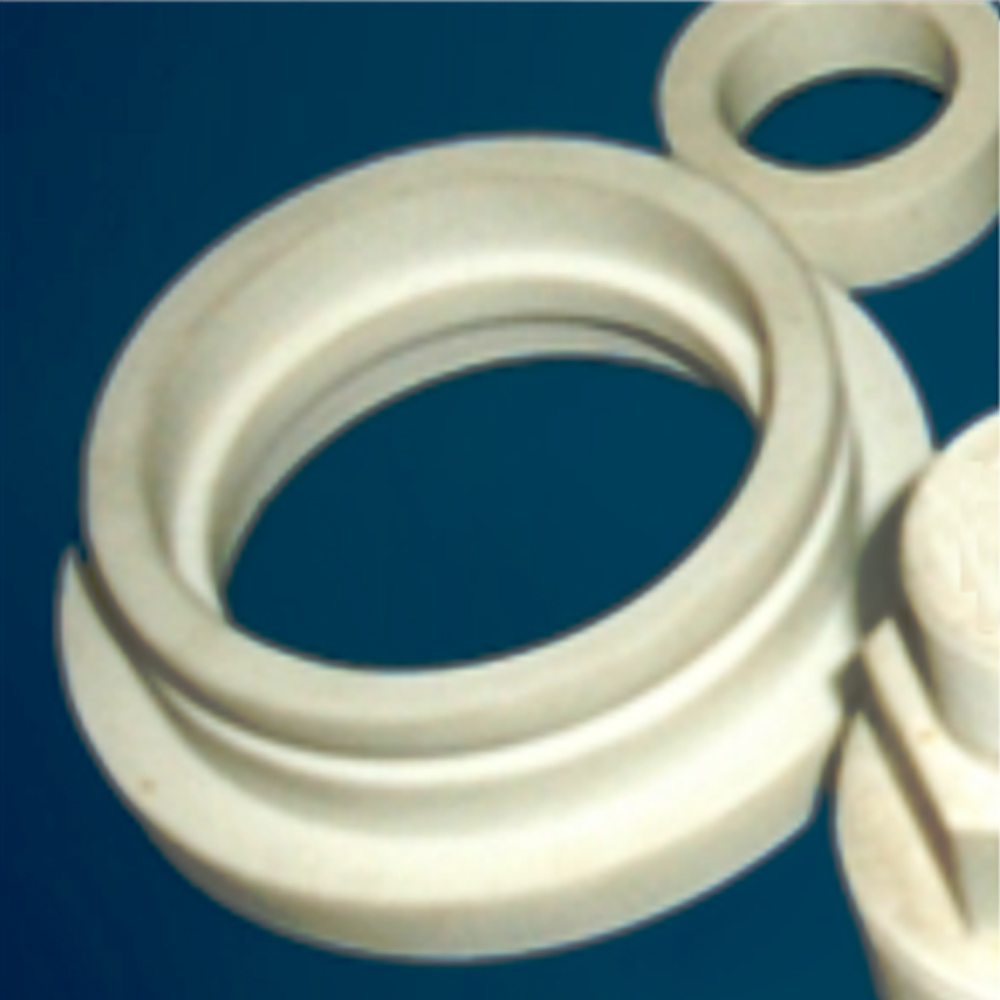

  • Gear, Precision bearing
  • Nozzle, Pump housing
  • Valve body, …etc.
  • Parts for aviation application
  • Parts for medical field

Material Grade

  • PEI Virgin Grade (PEI-VG)
  • PEI Anti-Static (PEI–ESD)
  • PEI Glass Filled (PEI-GF)

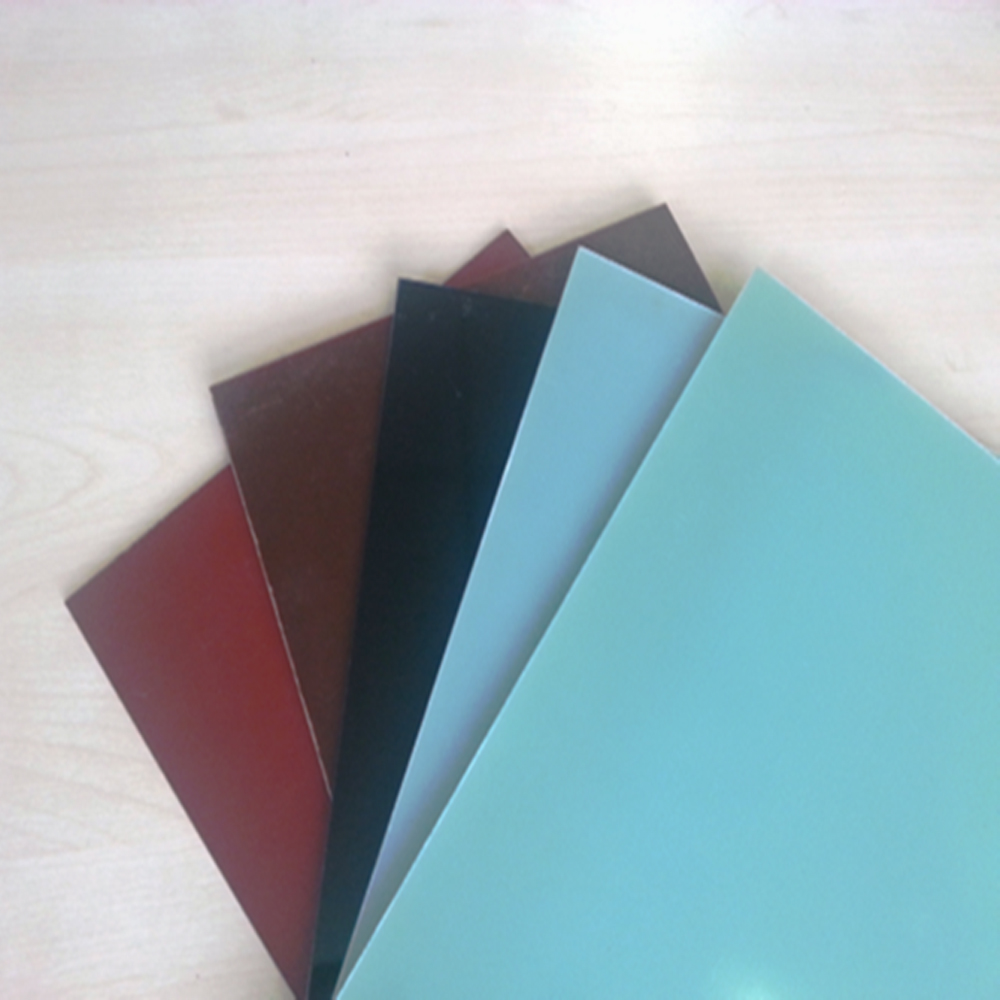

Stock Shape And Sizes

Technical Data @ 23oC Dry
